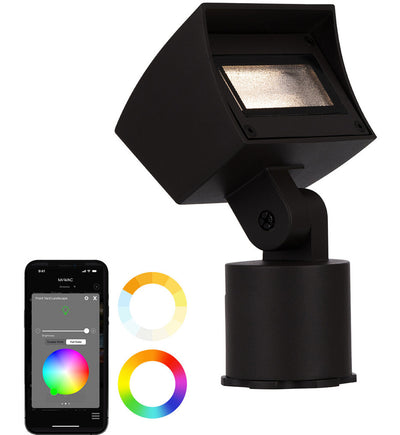

WAC Lighting - LED Colorscaping RGBWW Wall Wash Light

Dimensions & Installation

Height

6.38 in

Width

3.75 in

Length

4.38 in

Product Weight

7.01 lbs

Install Type

Hardwire

Wire Length

36 in

Product Size

3.75

Light Output & Performance

Bulb Type

LED

Number of Bulbs

1

Wattage

16

Lumens

1015

Color Temperature

Color Changing

CRI

85

Dimmable

Yes

Beam Spread

Flood

Dusk to Dawn

No

Motion Sensor

No

Solar Powered

No

Voltage

12

Bulb Base

Integrated LED

Bulb Shape

LED

Bulbs Included

Yes

Materials & Style

Material

K-Alloy Aluminum

Base Color

Black

Shade Material

Glass

Shade Color

Frosted Glass Lens

Ratings & Compliance

Location Rating

Wet Location

Safety Rating

UL, CUL

Marine Grade

No

ADA Compliant

Yes

Dark Sky Friendly

No

Energy Star

No

Title 24 Compliant

Yes

Prop 65

Yes

Warranty

10 Years Functional, 2 Years Finish

Country of Origin

China

Brand & Product Info

Brand Name

WAC Lighting

Product Collection

Colorscaping

UPC

197179001393

Product Features

• Create dynamic, eye-catching stunning vignettes with the WAC Colorscaping system. Celebrate artful illumination with new COLORSCAPING Wall Wash and Accent Lights from WAC Landscape Lighting. Heighten drama to render visual impact on magnificent tree trunk and branch silhouettes, brilliant colorful scenery on your hedgerow, or a swath of light washing a facade. Customize your experiences and enjoy your passion for color and the language of light with unbridled enthusiasm and a nearly endless palette. The possibilities are endless. Colorscaping is a state-of-the-art fully tunable landscape lighting system where each luminaire can be individually controlled or grouped from the myWAC iOS or Android App. Every Colorscaping fixture can be adjusted from 2700K to 6500K and millions of bright and vibrant colors. Colorscaping fixtures connect to a patented WAC Power Supply that is sold in 150W (8150CS-TRN-SS) and 300W (8300CS-TRN-SS) capacities. WAC Colorscaping fixtures are installed to the power supply using standard 12-2 landscape wire making the system incredibly simple to install and retrofit onto an existing landscape lighting system. Data is communicated to Colorscaping fixtures through the 12-2 low voltage landscape cable using PLC (Power Line Communication) technology that sends data signlas between the power supply and Colorscaping fixtures, eliminating the need to run secondary wires that can be found in competing smart or color changing landscape systems. WiFi powered WAC Colorscaping Power Supply can control all fixtures with no WiFi range limitation to your fixtures as long as the power supply is within WiFi range (Cat45 port is available on the power supply for a more reliable hardwired internet connection). The WAC Colorscaping Power Supply features two shared power banks that can be used to power both Colorscaping and basic 12V landscape lighting fixtures on a single system, activating complete smart controls for Colorscaping fixtures and basic smart features for non-Colorscaping fixtures, including timer/scheduler, on/off, and brightness control (NOTE: does not make non-Colorscaping fixtures color tunable). The WAC Colorscaping power supply has multiple 12V taps that can autodetect voltage drop and send a guaranteed balanced 12V to each landscape lighting fixture on the system. The WAC Colorscaping power supply has 16-quick adjust color settings that you can interface with to easily toggle and test your Colorscaping fixtures.
• WAC LED Colorscaping RGBWW Color Changing Wall Wash 16W Light in Black
• Colorscaping is a state-of-the-art fully tunable landscape lighting system where each luminaire can be individually controlled or grouped from the myWAC iOS or Android App.
• Casted using a special k-alloy aluminum or brass option that is engineered to withstand the most challenging environments over time with enhanced protection against corrosive elements and is recommended for use in coastal or marine environments.
• The WAC wall wash provides a bright and even illumination.
• Every Colorscaping fixture can be adjusted from 2700K to 6500K and millions of bright and vibrant colors. Colorscaping fixtures connect to a patented WAC Power Supply that is sold in 150W (8150CS-TRN-SS) and 300W (8300CS-TRN-SS) capacities. Coloscaping power supply can power both Colorscaping and non-Colorscaping landscape fixtures.
• High Powered LED, Input: 9-15V AC, Power: 16W (24.5VA), Brightness: up to 1015Lm, CRI: 85, Rated Hours: 50,000. Smooth and continuous dimming to 10%% with the Colorscaping Power Supply.
• Standards: UL & cUL 1598 and IP66 Rated for Wet Locations (See Specification Sheet for complete details).
• Complete Fixture, Replaceable LED, 36in Wire, 2 X Ideal Direct Burial Nuts
