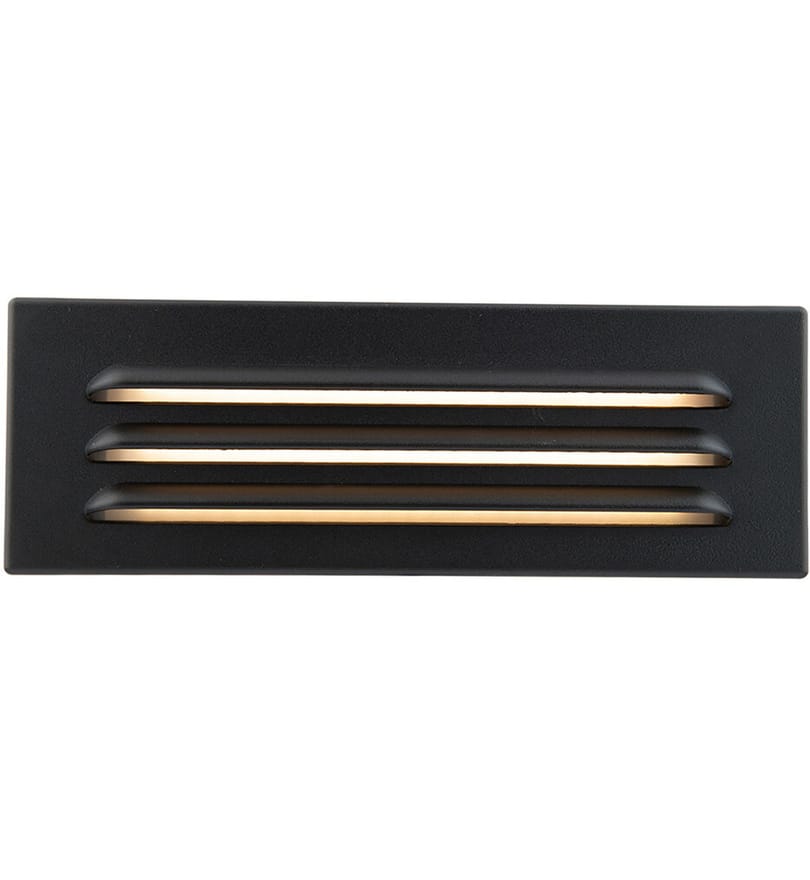

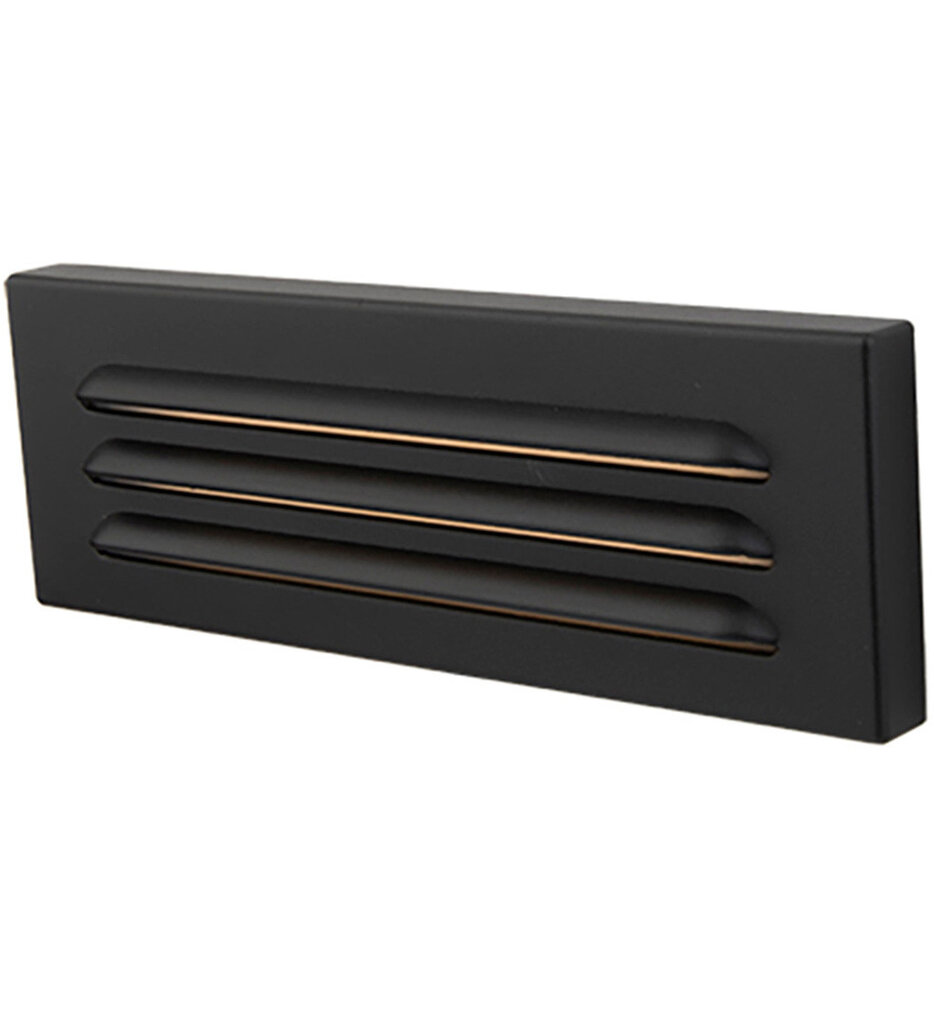

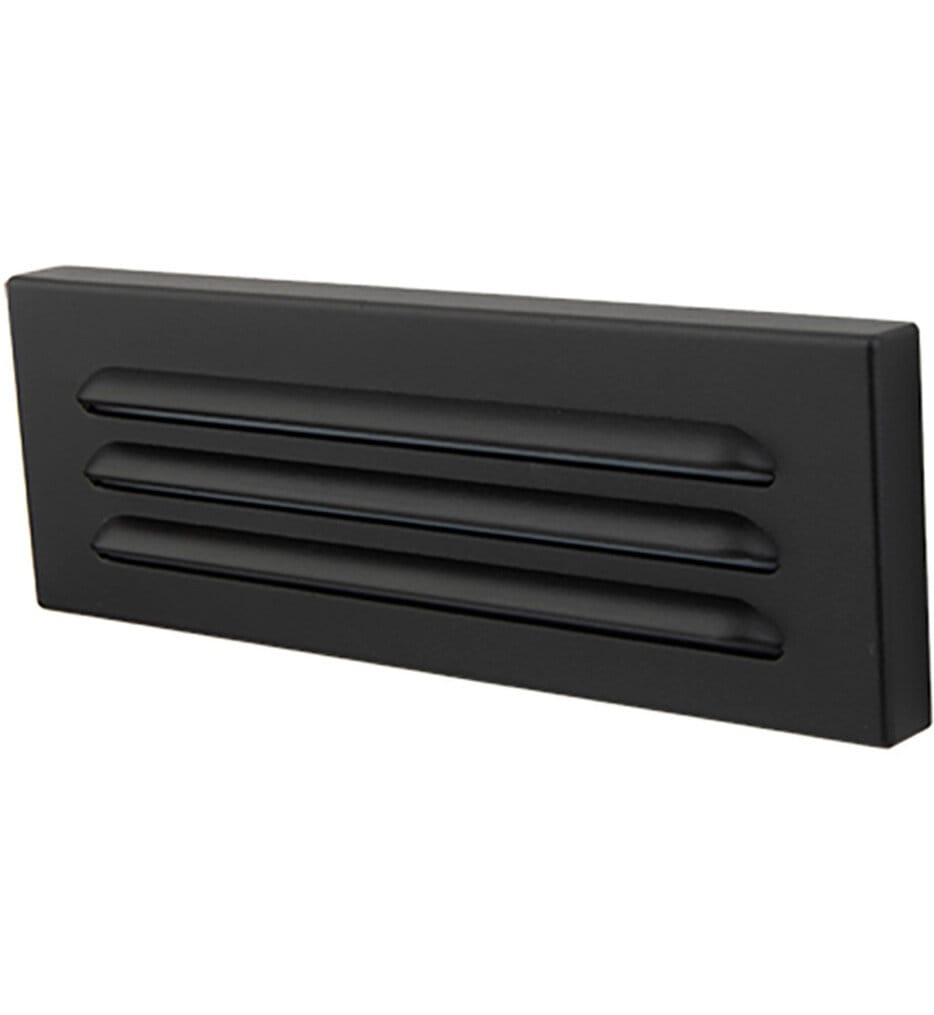

WAC Lighting - 9in 12V LED Horizontal Louvered Surface Mounted Step Light and Wall Light

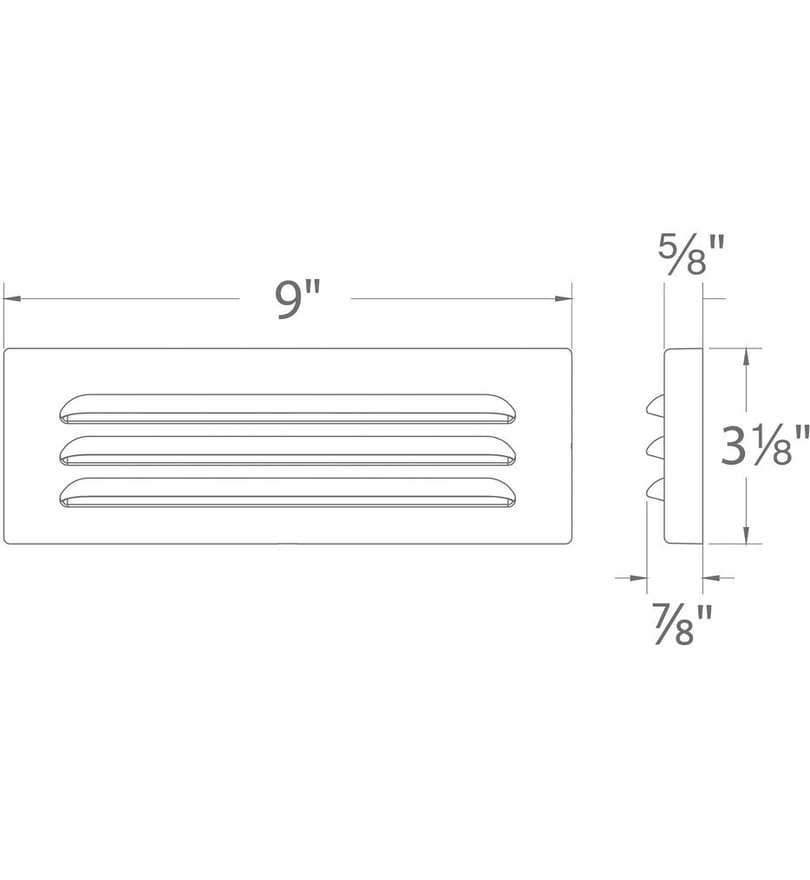

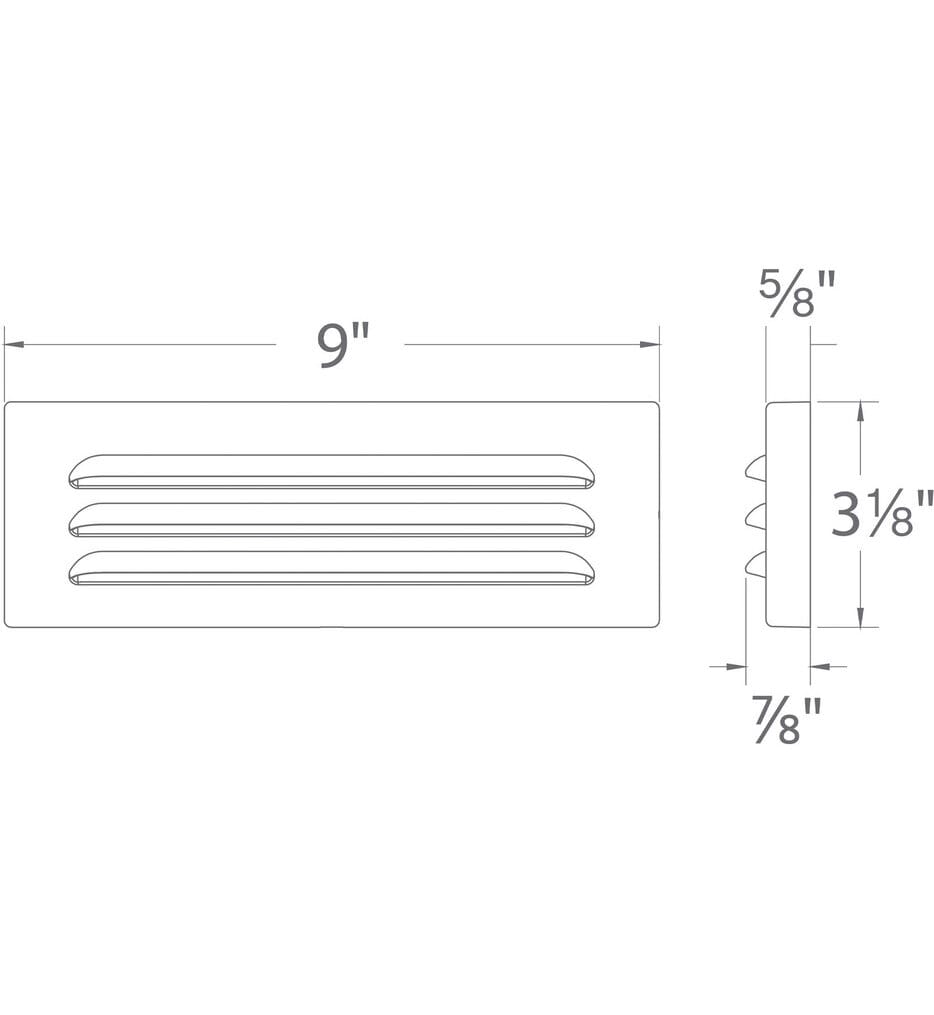

Dimensions & Installation

Height

3.13 in

Width

9 in

Length

0.88 in

Product Weight

0.94 lbs

Install Type

Hardwire

Wall Plate Height

9 in

Wall Plate Width

3.13 in

Wire Length

6 in

Product Size

9

Light Output & Performance

Bulb Type

LED

Number of Bulbs

1

Wattage

8

Lumens

100

Color Temperature

2700

CRI

90

Dimmable

Yes

Beam Spread

37

Dusk to Dawn

No

Motion Sensor

No

Solar Powered

No

Voltage

12

Bulb Base

Integrated LED

Bulb Shape

LED

Bulbs Included

Yes

Materials & Style

Material

K-Alloy Aluminum

Style

Industrial

Base Color

Black

Shade Material

Glass

Shade Color

Frosted Glass Lens

Ratings & Compliance

Location Rating

Wet Location

Safety Rating

UL, CUL

Marine Grade

No

ADA Compliant

Yes

Dark Sky Friendly

Yes

Energy Star

No

Title 24 Compliant

Yes

Prop 65

Yes

Warranty

10 Years Functional, 2 Years Finish

Country of Origin

China

Brand & Product Info

Brand Name

WAC Lighting

Product Collection

WAC 12V Surface Mounted Step Light

UPC

790576785837

Product Features

• This slim low-profile step and wall light is designed to surface mount onto any application without the need for an electrical box like traditional step and wall lights, enabling the versatility to install the WAC Surface Mounted Step and Wall Light anywhere you would like. Available in a variety of finishes and color temperatures, this sleek and versatile step and wall light is sure to meet your expectations. UL and cUL listed for exterior locations with an IP66 rating to withstand rain and continuous streams of water. Constructed from a corrosion resistant aluminum alloy with a die-cast solid brass option for marine or coastal environments. Accepts an input voltage range of 9-15VAC and can tap into an existing landscape lighting power supply. If there is no existing power supply, this light will require a remote 12VAC transformer (EN-12100-RB2) sold separately to step down your 120VAC household voltage down to 12VAC. A 3ft lead wire is included for ease of installation.
• 9in 12V LED Horizontal Louvered Surface Mounted Indoor or Outdoor Step Light and Wall Light 2700K in Black
• Constructed from a corrosion resistant aluminum alloy with a die-cast solid brass option for marine or coastal environments. A 3ft lead wire is included for ease of installation.
• Available in a variety of finishes and color temperatures, this sleek and versatile step and wall light is sure to meet your expectations. Also available in a standard 5in size (4501) and a wide 9in size (4901).

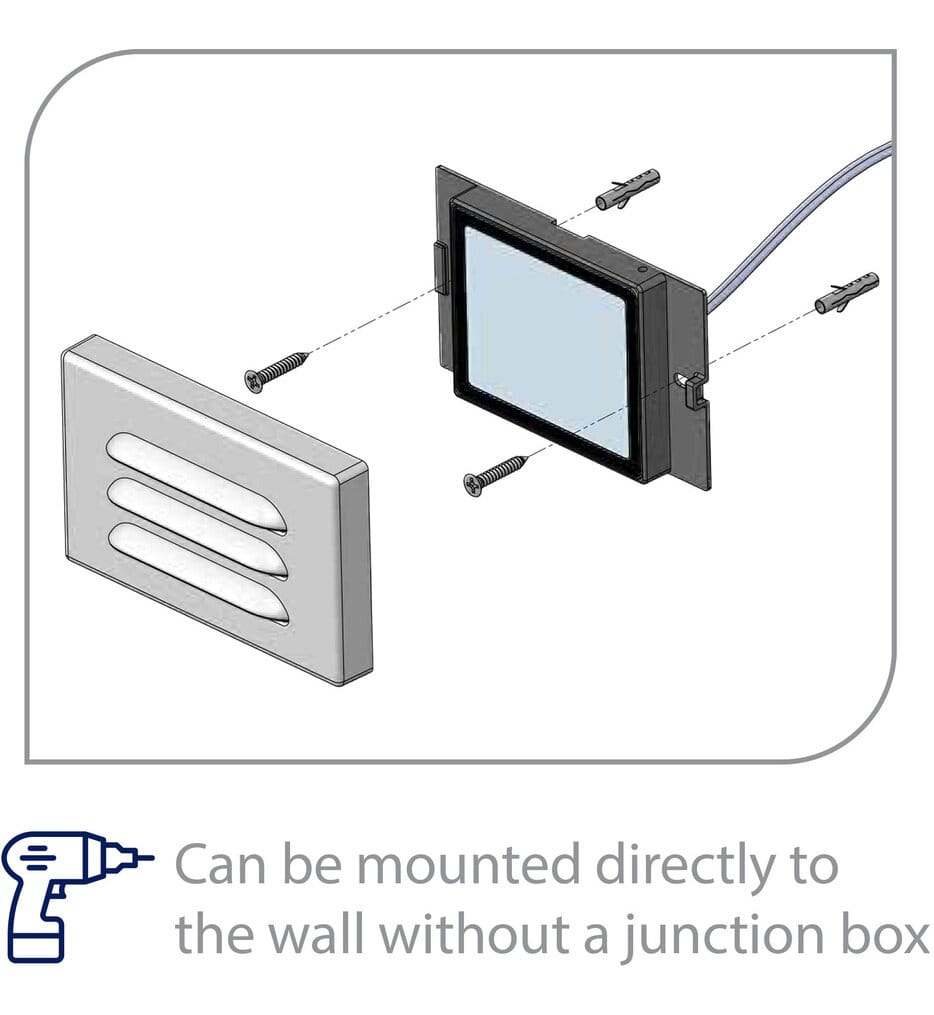

• Does not require an electrical/junction box for installation. Versatility to install the WAC Surface Mounted Step and Wall Light anywhere you would like. Wet location rated to IP66 standards for indoor and outdoor installations, No UV or heat radiation.
• Smooth and continuous ELV dimming to 10%% with an Electronic Low Voltage dimmer. Accepts an input voltage range of 9-15VAC and can tap into an existing landscape lighting power supply. If there is no existing power supply, this light will require a remote 12VAC transformer (EN-12100-RB2) sold separately.
• Replaceable LED Module available in 2700K, and 3000K Color Temperatures, Power Consumption: 8W, Lumens: Up to 120, CRI: 90, 70,000 hours rated life.
• Standards: UL & cUL 1838 and IP66 Rated for Wet Locations (See Specification Sheet for complete details).
• Step Light, Replaceable LED, Mounting Hardware
