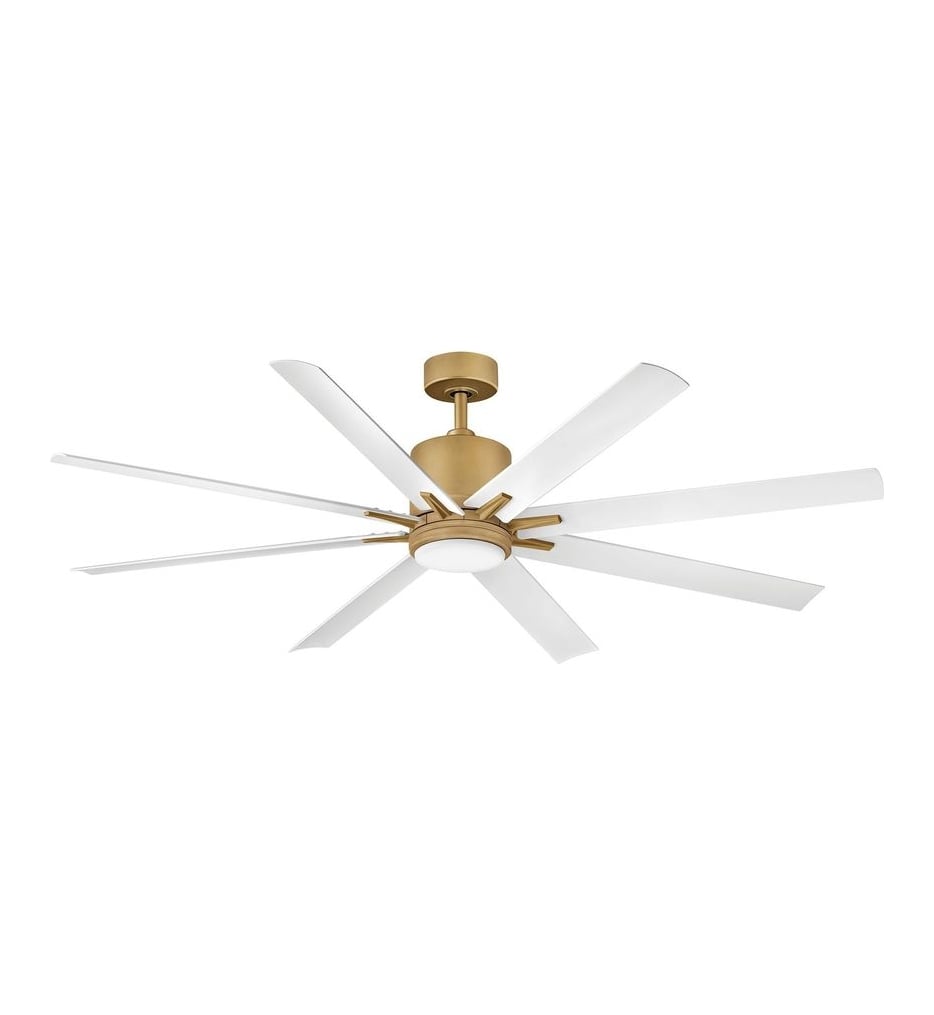

Hinkley Lighting - Vantage 66" LED Smart Fan

Name: Hinkley Lighting - Vantage 66" LED Smart Fan
Brand: Hinkley Lighting
SKU: HINK-907166FHB-LWD
Availability: InStock

Brand: Hinkley LightingSKU: 907166FHB-LWD

$779.00

Loading options...

In Stock. Ships in 1-3 business days

Price Match

Free Shipping

Easy Returns

Product Specs

Product Overview

Create a major aesthetic statement with Vantage's modern industrial design featuring gently curved blades. Available in a variety of versatile finish options, Vantage can be applied to a range of indoor and outdoor spaces. Equipped with integrated LED and DC motor technology to deliver excellent energy efficiency., Create a major aesthetic statement with Vantage's modern industrial design featuring gently curved blades. Available in a variety of finish options, Vantage can be applied to a range of spaces. Equipped with integrated LED and DC motor technology to deliver excellent energy efficiency. Vantage is so versatile, it can be used for both indoor and outdoor spaces., Can be hung on a sloped ceiling | This item includes a 6" down rod (other lengths of down rods are available) | Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app | Light kit cover included | Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting, use as a wall control or portable remote | WiFi Enabled Smart Fan is compatible with your home’s WiFi network | LED components carry a 5-year limited warranty | Motor carries a lifetime warranty | Merging the best of traditional and modern elements with a sophisticated and streamlined look | Fans should be installed at a minimum of 7 feet from the floor | Wet rated fans are a must in an area exposed to the elements or where condensation or high humidity are factors | Energy-efficient integrated LED - safer for the environment and low maintenance, Fan Control included, 6 Spd HIRO:R, FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling

Dimensions & Installation

Blade Span: 66"; Blade-tip to blade-tip diameter. Match to room size: 42 in. or less for small rooms, 44-52 in. for medium, 54-60 in. for large, 60 in. and up for great rooms.
Ceiling to Blade Height: 12.25 in; Distance from ceiling to fan blades. Code typically requires a 7 ft. minimum from blades to floor. Use it to plan downrod length.
Height: 16.75 in
Product Weight: 24.2 lbs
Sloped Ceiling Compatible: Yes; Suitable for angled or vaulted ceilings. Check the fixture’s maximum slope and whether an adapter is required before installation.

Fan Performance

Fan Airflow (CFM on High): 9129; Cubic Feet per Minute (CFM). Higher = more air movement. Bedroom: 1,500-3,000 CFM. Living room: 4,000-6,000 CFM. Great room: 6,000+ CFM.
Fan Airflow Efficiency (CFM/Watts): 282; CFM per watt. Higher = moves more air per electricity used. ENERGY STAR certified fans are typically 80+ CFM/W.
Blade Pitch: 12.5 Degrees
Fan Speeds: 6
Motor Type: DC
Motor Speed: 108
Reversible Motor: Yes; Motor reverses direction for summer (cooling, blades spin counter-clockwise) and winter (warm-air recirculation, blades spin clockwise).
Reversible Blades: No
Fan Wattage: 16
Fan Amps: 0.49

Controls & Operation

Fan Control Type: HIRO Control - 6 Speed Reversing; How you operate the fan: pull-chain, wall switch, included remote, or smart-home app (Wi-Fi, Alexa). Remote and smart fans have the receiver built into the fan body.
Control Included: Yes

Light Kit

Light Kit Included: Yes
Bulb Type: LED
Wattage: 16; The maximum power the fixture is designed to use. For replaceable bulbs, stay within the listed wattage; for integrated LED, use wattage mainly to understand energy use, not brightness.
Lumens: 1320; Measures light output. Higher lumens mean brighter light, so use lumens, not watts, to compare brightness.
Color Temperature: 3000; Describes the color of the light. 2400K - 2700K feels warm and relaxed, 3000K is a clean warm white, and 4000K+ feels cooler and more task-focused.
CRI: 90; Color Rendering Index. 80+ is standard. 90+ shows colors more accurately — important for art, makeup, kitchens. 100 = sunlight.
Dimmable: Yes; Allows light levels to shift with the room’s use and mood. Confirm the fixture, bulb or integrated LED, and dimmer are compatible to avoid flicker or limited dimming range.
Voltage: Line (110-120); Standard US residential is 120V. 277V is commercial. Low-voltage (12V/24V) requires a transformer. Most fixtures: 120V.
Bulb Option: 16w LED *Included
Bulbs Included: Yes

Materials & Style

Style: Art Deco, Classic, Contemporary, Minimalist, Modern, Transitional
Blade Finish: Matte White
Blade Material: Composite
Housing Finish: Brass
Housing Material: Steel

Ratings & Compliance

Location Rating: Wet Location; Dry = indoor spaces without moisture; damp = covered areas with humidity; wet = locations exposed directly to water or weather. Match the rating to the installation environment.
Safety Rating: ETL; Independently tested for electrical safety — UL, ETL, cUL, or cETL listed (the c marks certify for both the US and Canada). US building codes require certified fixtures for permanent wired installations.
Title 24 Compliant: Yes; Meets California Title 24 building energy code. Required for most new residential construction in CA.
Prop 65: Yes; California Proposition 65 disclosure. Required when applicable for products sold in California; it does not necessarily mean the product is unsafe when used as intended.
Country of Origin: China

Brand & Product Info

Brand Name: Hinkley Lighting
Product Collection: Vantage
UPC: 640665920116

Product Features

Create a major aesthetic statement with Vantage's modern industrial design featuring gently curved blades. Available in a variety of versatile finish options, Vantage can be applied to a range of indoor and outdoor spaces. Equipped with integrated LED and DC motor technology to deliver excellent energy efficiency.
Create a major aesthetic statement with Vantage's modern industrial design featuring gently curved blades. Available in a variety of finish options, Vantage can be applied to a range of spaces. Equipped with integrated LED and DC motor technology to deliver excellent energy efficiency. Vantage is so versatile
it can be used for both indoor and outdoor spaces.
Can be hung on a sloped ceiling | This item includes a 6" down rod (other lengths of down rods are available) | Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app | Light kit cover included | Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting
use as a wall control or portable remote | WiFi Enabled Smart Fan is compatible with your home’s WiFi network | LED components carry a 5-year limited warranty | Motor carries a lifetime warranty | Merging the best of traditional and modern elements with a sophisticated and streamlined look | Fans should be installed at a minimum of 7 feet from the floor | Wet rated fans are a must in an area exposed to the elements or where condensation or high humidity are factors | Energy-efficient integrated LED - safer for the environment and low maintenance
Fan Control included, 6 Spd HIRO:R
FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
