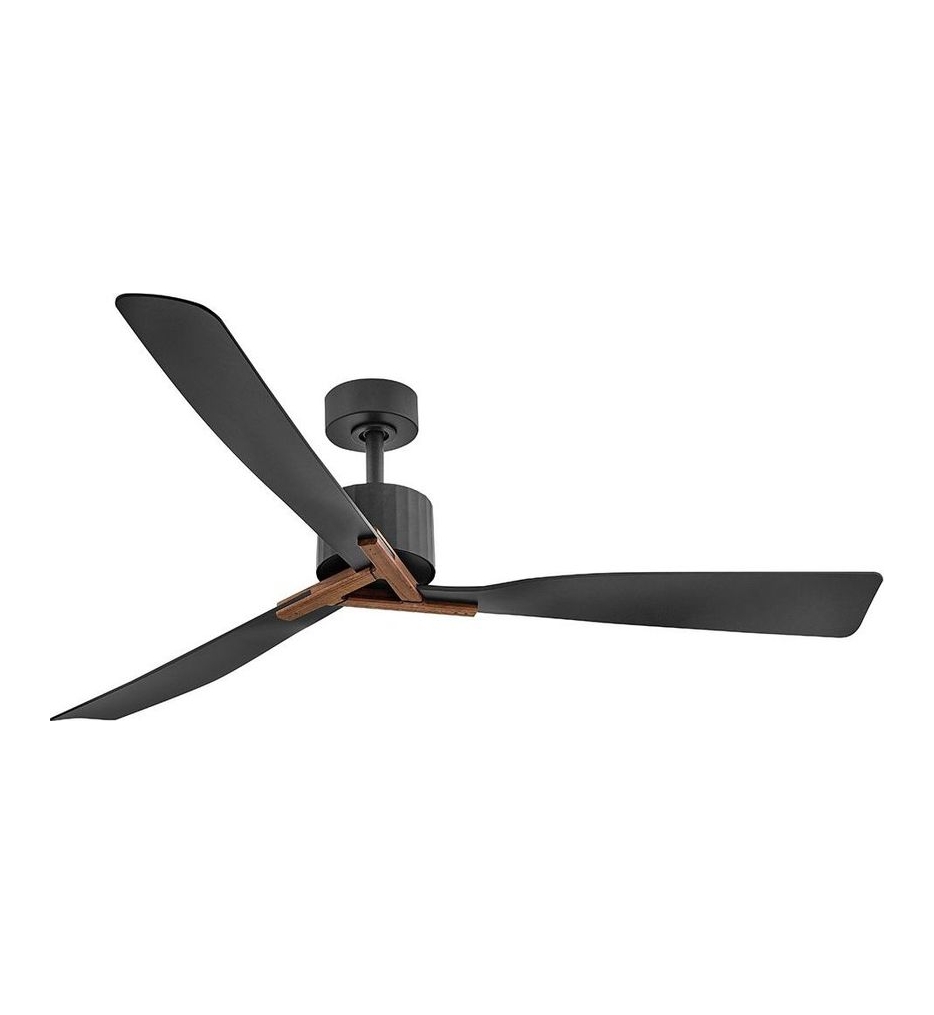

Hinkley Lighting - Rafter 60-Inch LED Smart Fan with Uplight
Product Overview
Inspired by the organic minimalism of modern Scandinavian styles, Rafter’s streamlined design adds warmth to your living space with wooden accents at the base of stylishly contoured blades. Indirect LED uplighting casts an inviting glow throughout the surrounding area. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control and WiFi compatible with the Hinkley App., Can be hung on a sloped ceiling | This item includes a 6" down rod (other lengths of down rods are available) | Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app | Equipped with an energy-efficient DC motor | Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting, use as a wall control or portable remote | Built-in uplight adds accent illumination to the ceiling | WiFi Enabled Smart Fan is compatible with your home’s WiFi network | Motor carries a lifetime warranty | Blades, controls, switches, capacitors and hardware carry a 1-year warranty | Bold silhouette with dramatic details creates a modern statement | Fans should be installed at a minimum of 7 feet from the floor | Energy-efficient integrated LED - safer for the environment and low maintenance | Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms, FAN: DC Motor, Fan Control included, 6 Spd HIRO:R, FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
Appearance
- Accent Color
- Walnut
- Blade Finish
- Matte Black
- Blade Material
- Composite
- Housing Finish
- Black
- Housing Material
- Steel
- Style
- Classic, Contemporary, Farmhouse, Industrial, Japandi, Mid-Century, Minimalist, Modern, Transitional
Bulb Information
- Bulb Option
- 15w LED *Included Uplight
- Bulb Type
- LED
- Color Temperature
- 3000
- CRI
- 90
- Dimmable
- Yes
- Bulbs Included
- Yes
- Lumens
- 1000
- Title 24 Compliant
- No
- Voltage
- Line (110-120)
- Wattage
- 15
Details & Features
- Blade Pitch
- 14 Degrees
- Brand Name
- Hinkley Lighting
- Location Rating
- Damp Location
- Control Included
- Yes
- Country of Origin
- Taiwan
- Prop 65
- Yes
- Product Collection
- Rafter
- Sloped Ceiling Compatible
- Yes
- Fan Airflow (CFM on High)
- 6120
- Safety Rating
- ETL
- Fan Airflow Efficiency (CFM/Watts)
- 211
- Fan Amps
- 0.43
- Fan Control Type
- HIRO Control - 6 Speed Reversing
- Fan Speeds
- 6
- Fan Wattage
- 15
- Light Kit Included
- No
- Motor Speed
- 134
- Motor Type
- DC
- UPC
- 640665921977
- Reversible Blades
- No
- Reversible Motor
- Yes
Dimensions
- Height
- 12.5 in
- Blade Span
- 60"
- Canopy Diameter
- 5.5 in
- Ceiling to Blade Height
- 10.25 in
- Product Weight
- 12.57 lbs
Product Features
- Inspired by the organic minimalism of modern Scandinavian styles, Rafter’s streamlined design adds warmth to your living space with wooden accents at the base of stylishly contoured blades. Indirect LED uplighting casts an inviting glow throughout the surrounding area. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control and WiFi compatible with the Hinkley App.
- Inspired by the organic minimalism of modern Scandinavian styles, Rafter’s streamlined design adds warmth to your living space with wooden accents at the base of stylishly contoured blades. Indirect LED uplighting casts an inviting glow throughout the surrounding area. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control and WiFi compatible with the Hinkley App.
- Can be hung on a sloped ceiling | This item includes a 6" down rod (other lengths of down rods are available) | Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app | Equipped with an energy-efficient DC motor | Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting
- use as a wall control or portable remote | Built-in uplight adds accent illumination to the ceiling | WiFi Enabled Smart Fan is compatible with your home’s WiFi network | Motor carries a lifetime warranty | Blades, controls, switches, capacitors and hardware carry a 1-year warranty | Bold silhouette with dramatic details creates a modern statement | Fans should be installed at a minimum of 7 feet from the floor | Energy-efficient integrated LED - safer for the environment and low maintenance | Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms
- FAN: DC Motor
- Fan Control included, 6 Spd HIRO:R
- FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
