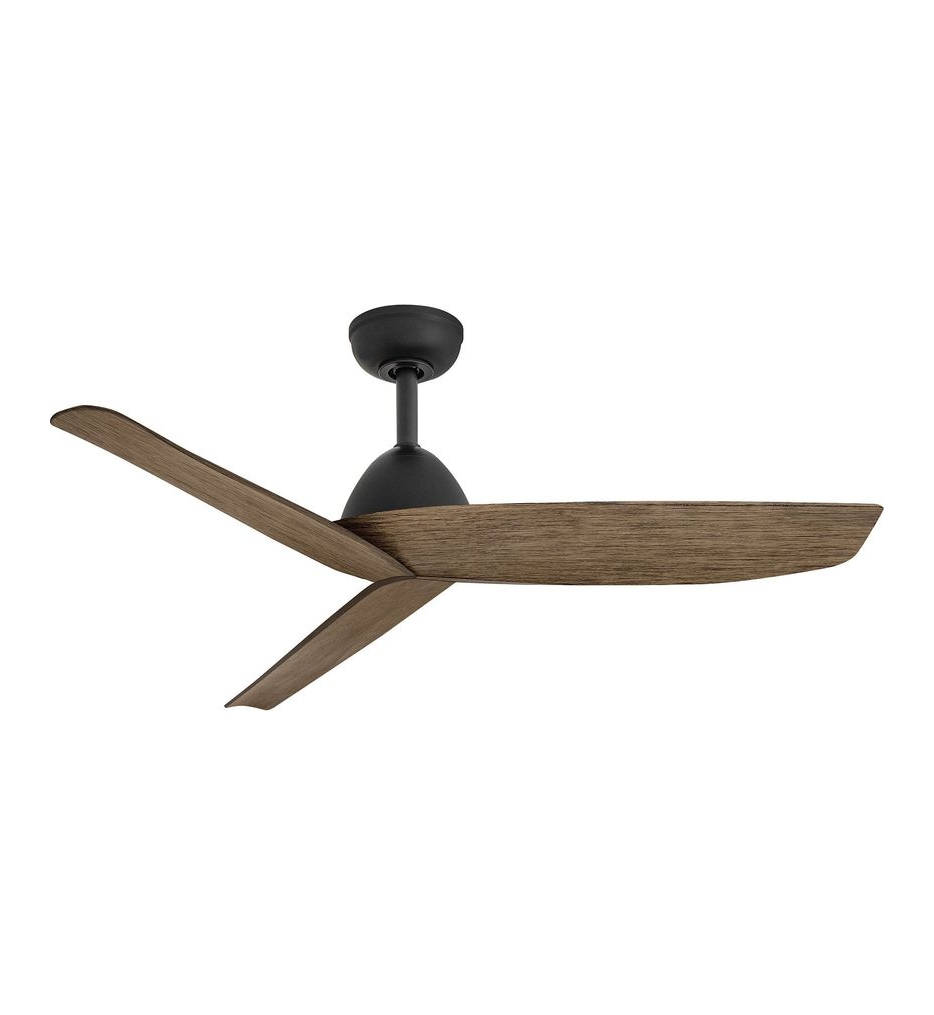

Hinkley Lighting - Liv 48-Inch Smart Fan
Product Specs
Product Overview
The Coastal Elements Collection offers versatile designs, constructed of composite materials and coated with anti-fading finishes, for maximum durability in harsh climates., Liv’s sleek, wet-rated design accentuates modern interior or outdoor spaces with its artfully arranged blades. Part of the Coastal Elements Collection, this resilient fan is crafted with composite materials that are coated with an anti-fading finish for maximum durability. Liv is equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App., Can be hung on a sloped ceiling | This item includes a 6" down rod (other lengths of down rods are available) | Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app | Equipped with an energy-efficient DC motor | Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting, use as a wall control or portable remote | WiFi Enabled Smart Fan is compatible with your home’s WiFi network | Motor carries a lifetime warranty | Part of the Coastal Elements Collection of weather-resistant lighting designs constructed from composite materials and coated with anti-fading finishes | Fans should be installed at a minimum of 7 feet from the floor | Wet rated fans are a must in an area exposed to the elements or where condensation or high humidity are factors | High quality composite resists rust, corrosion, and fading – ideal for harsh weather conditions, FAN: DC Motor, Fan Control included, 6 Spd HIRO:R, FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
Dimensions & Installation
- Blade Span
- 48"
- Blade-tip to blade-tip diameter. Match to room size: 42 in. or less for small rooms, 44-52 in. for medium, 54-60 in. for large, 60 in. and up for great rooms.
- Ceiling to Blade Height
- 11.25 in
- Distance from ceiling to fan blades. Code typically requires a 7 ft. minimum from blades to floor. Use it to plan downrod length.
- Canopy Diameter
- 5.75 in
- Height
- 13 in
- Product Weight
- 10.25 lbs
- Sloped Ceiling Compatible
- Yes
- Suitable for angled or vaulted ceilings. Check the fixture’s maximum slope and whether an adapter is required before installation.
Fan Performance
- Fan Airflow (CFM on High)
- 5085.0
- Cubic Feet per Minute (CFM). Higher = more air movement. Bedroom: 1,500-3,000 CFM. Living room: 4,000-6,000 CFM. Great room: 6,000+ CFM.
- Fan Airflow Efficiency (CFM/Watts)
- 175.0
- CFM per watt. Higher = moves more air per electricity used. ENERGY STAR certified fans are typically 80+ CFM/W.
- Blade Pitch
- 14 Degrees
- Fan Speeds
- 6
- Motor Type
- DC
- Motor Speed
- 195.0
- Reversible Motor
- Yes
- Motor reverses direction for summer (cooling, blades spin counter-clockwise) and winter (warm-air recirculation, blades spin clockwise).
- Reversible Blades
- No
- Fan Amps
- 0.24
Controls & Operation
- Fan Control Type
- HIRO Control - 6 Speed Reversing
- How you operate the fan: pull-chain, wall switch, included remote, or smart-home app (Wi-Fi, Alexa). Remote and smart fans have the receiver built into the fan body.
- Control Included
- Yes
Light Kit
- Light Kit Included
- No
- Voltage
- Line (110-120)
- Standard US residential is 120V. 277V is commercial. Low-voltage (12V/24V) requires a transformer. Most fixtures: 120V.
- Bulbs Included
- No
Materials & Style
- Style
- Classic, Contemporary, Minimalist, Modern, Transitional
- Blade Finish
- Driftwood
- Blade Material
- Composite
- Housing Finish
- Black
- Housing Material
- Composite
Ratings & Compliance
- Location Rating
- Wet Location
- Dry = indoor spaces without moisture; damp = covered areas with humidity; wet = locations exposed directly to water or weather. Match the rating to the installation environment.
- Safety Rating
- ETL
- Independently tested for electrical safety — UL, ETL, cUL, or cETL listed (the c marks certify for both the US and Canada). US building codes require certified fixtures for permanent wired installations.
- Title 24 Compliant
- No
- Meets California Title 24 building energy code. Required for most new residential construction in CA.
- Prop 65
- Yes
- California Proposition 65 disclosure. Required when applicable for products sold in California; it does not necessarily mean the product is unsafe when used as intended.
- Country of Origin
- Taiwan
Brand & Product Info
- Brand Name
- Hinkley Lighting
- Product Collection
- Liv
- UPC
- 640665920512
Product Features
- The Coastal Elements Collection offers versatile designs, constructed of composite materials and coated with anti-fading finishes, for maximum durability in harsh climates.
- Liv’s sleek, wet-rated design accentuates modern interior or outdoor spaces with its artfully arranged blades. Part of the Coastal Elements Collection, this resilient fan is crafted with composite materials that are coated with an anti-fading finish for maximum durability. Liv is equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
- Liv’s sleek, wet-rated design accentuates modern interior or outdoor spaces with its artfully arranged blades. Part of the Coastal Elements Collection, this resilient fan is crafted with composite materials that are coated with an anti-fading finish for maximum durability. Liv is equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
- Can be hung on a sloped ceiling | This item includes a 6" down rod (other lengths of down rods are available) | Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app | Equipped with an energy-efficient DC motor | Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting
- use as a wall control or portable remote | WiFi Enabled Smart Fan is compatible with your home’s WiFi network | Motor carries a lifetime warranty | Part of the Coastal Elements Collection of weather-resistant lighting designs constructed from composite materials and coated with anti-fading finishes | Fans should be installed at a minimum of 7 feet from the floor | Wet rated fans are a must in an area exposed to the elements or where condensation or high humidity are factors | High quality composite resists rust, corrosion, and fading – ideal for harsh weather conditions
- FAN: DC Motor
- Fan Control included, 6 Spd HIRO:R
- FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
